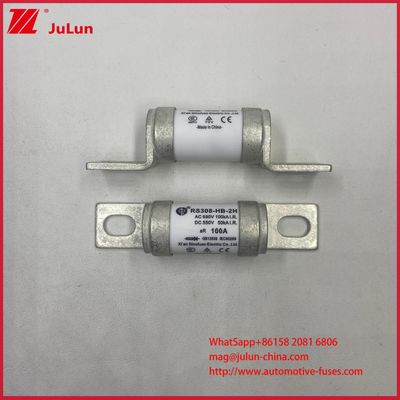

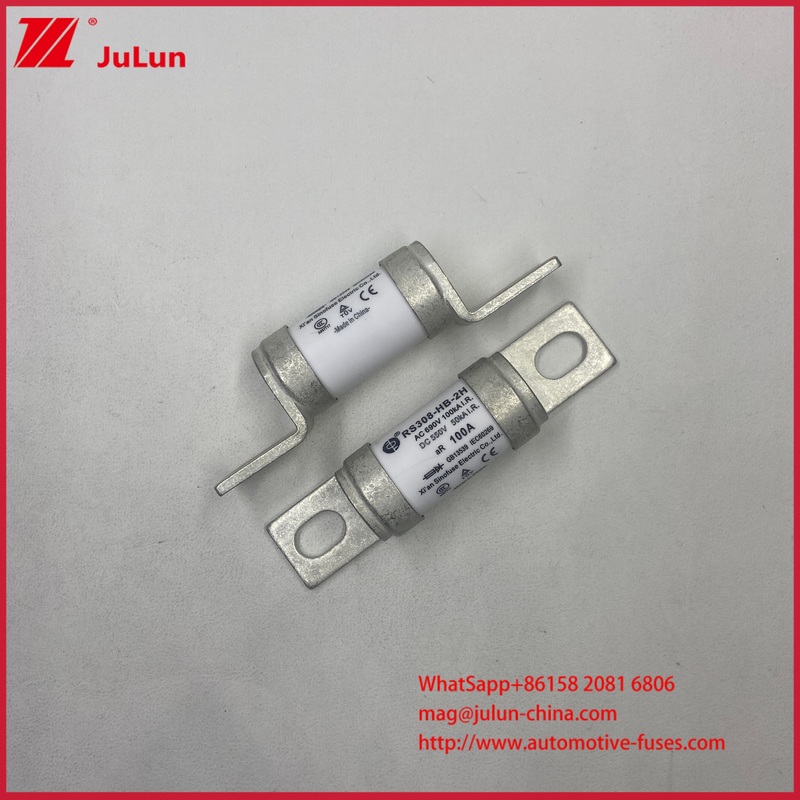

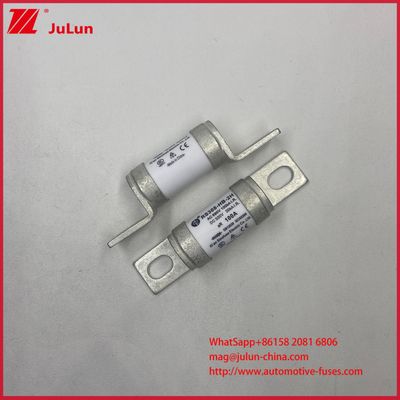

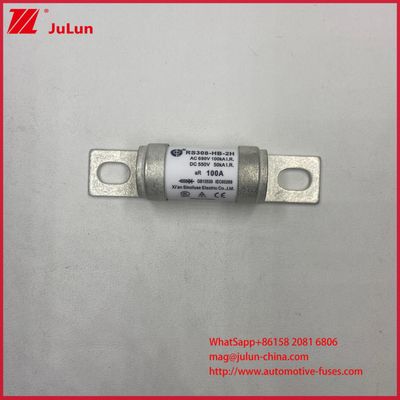

Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | SINO FUSE |
| Orzecznictwo: | UL |
| Numer modelu: | RS308-HB-2H 63A 80A |
Zapłata:
| Minimum Order Quantity: | 10 |
|---|---|
| Cena: | 5~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Zasady płatności: | TT, T/T |
| Supply Ability: | 1000K/PCS |
|
Szczegóły informacji |
|||
| Prąd znamionowy: | 10A do 710A | Śruba montażowa: | M6 M8 |
|---|---|---|---|
| Metoda montażu: | śruba śrubowa | Tworzywo: | Ceramiczny Miedź Srebro Kwarc Piasek Złoto |
| Funkcja: | Niewielkie rozmiary z dużym prądem nominalnym do ochrony przed zwarciem | Pojemność zerwania: | AC100KA@COSφ0,2,DC50KA@L/R≤10ms |
| Wykonanie nawiązuje: | IEC60269, a niezawodność środowiskowa jest zgodna z normami ISO8820, JASO D622 i GB/T31465 | Produkt aplikacji: | System trakcji EV, konwersja mocy, magazynowanie energii, ładowarka samochodowa itp. |
| Podkreślić: | ceramic automotive fuses for round pipe,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses |
||
opis produktu
Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
In summary, the Ceramic Automotive Fuses combine compactness with high current capacity, robust ceramic construction, and dependable bolt-connected fast fuse mounting, making them an excellent choice for modern automotive electrical protection. Their compliance with international performance and environmental standards assures users of their quality and reliability. Whether for passenger cars, commercial vehicles, or specialized automotive equipment, these Ceramic Car Fuses provide effective and durable short circuit protection, helping to maintain electrical system integrity and vehicle safety.
Technical Parameters
| Performance Standard | IEC60269 |
|---|---|
| Environmental Reliability | Complies with ISO8820, JASO D622, and GB/T31465 |
| Rated Voltage | AC690V / DC550V |
| Installation Bolt | M6, M8 |
| Rated Current | 10A to 710A |
| Application | EV Traction System, Power Conversion, Energy Storage, Car Charger, and etc. |
| Mounting Method | Screw Bolt |
| Installation Mode | Recommended Tight Torque |
| Breaking Capacity | AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms |
| Feature | Small Size with High Current Rating for Short Circuit Protection |
| Usage Category | AR |
